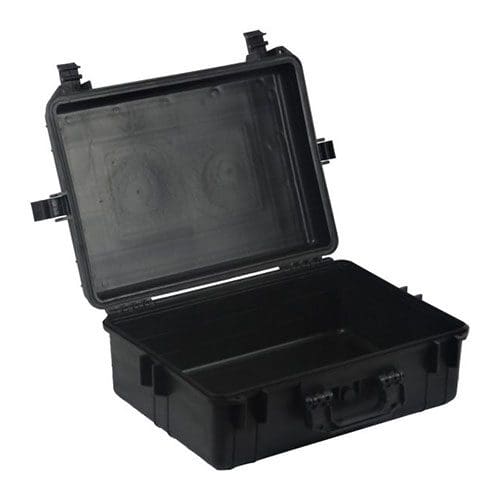

Challenger TR139 Waterproof Hard Case

	Length	Width	Height
Internal	479 mm	333 mm	97 mm
External	549 mm	438 mm	124 mm
Lid Height	28 mm
Base Height	68 mm
Weight	3.80 kg

ITEM	EXTERNAL DIMENSIONS	DIMENSIONS	LID	BOTTOM	WEIGHT W/O FOAM (KG)	WEIGHT W.FOAM (KG)
MAX001	175 x 115 x H47 mm 6.88 x 4.52 x H 1.85 inch	157 x 82 x H41 mm 6.18 x 3.22 x H1.61 inch	12 mm 0.47 inch	29 mm 1.14 inch	0,14 kg	0,15 kg
MAX002	230 x 175 x H53 mm 9.05 x 6.88 x H2.08 inch	212 x 140 x H47 mm 8.34 x 5.51 x H1.85 inch	14 mm 0.55 inch	33 mm 1.33 inch	0,26 kg	0,28 kg
MAX003	350 x 230 x H59 mm 13.77 x 9.05 x H2.32 inch	316 x 195 x H53 mm 12.44 x 7.67 x H2.08 inch	16 mm 0.63 inch	37 mm 1.46 inch	0,48 kg	0,52 kg
MAX004	350 x 230 x H86 mm 13.77 x 9.05 x H3.38 inch	316 x 195 x H81 mm 12.44 x 7.67 x H3.18 inch	16 mm 0.63 inch	65 mm 2.55 inch	0,54 kg	0,62 kg
MAX235H105	258 x 243 x H117,5 mm 10.16 x 9.56 xH 4.62 inch	235 x 180 x H106 mm 9.25 x 7.08 x H4.17 inch	25 mm 0.98 inch	81 mm 3.19 inch	0,82 kg	0,88 kg
MAX235H155	258 x 243 x H167.5 mm 10.16 x 9.56 x H6.59 inch	235 x 180 x H156 mm 9.25 x 7.08 x H6.14 inch	25 mm 0.98 inch	131 mm 5.16 inch	0,96 kg	1,06 kg
MAX300	336 x 300 x H148 mm 13.23 x 11.81 x H5.83 inch	300 x 225 x H132 mm 11.81 x 8.86 x H5.20 inch	33 mm 1.30 inch	99 mm 3.90 inch	1,62 kg	1,76 kg
MAX380H115	414 x 345 x H129 mm 16.30 x 13.58 x H5.08 inch	380 x 270 x H115 mm 14.96 x 10.62 x H4.52 inch	36 mm 1.42 inch	79 mm 3.11 inch	2,10 kg	2,35 kg
MAX380H160	414 x 345 x H174 mm 16.29 x 13.58 x H6.85 inch	380 x 270 x H160 mm 14.96 x 10.62 x H6.29 inch	36 mm 1.42 inch	124 mm 4.90 inch	2,455 kg	2,755 kg
MAX430	464 x 366 x H176 mm 18.27 x 14.41 x H6.93 inch	426 x 290 x H159 mm 16.77 x 11.42 x H6.26 inch	45 mm 1.77 inch	114 mm 4.49 inch	2,76 kg	3,04 kg
MAX465H125	502 x 415 x H141 mm 19.76 x 16.34 x H5.55 inch	465 x 335 x H125 mm 18.3 x 13.2 x H5 inch	40 mm 1.57 inch	85 mm 3.35 inch	2,62 kg	2,92 kg
MAX465H220	502 x 415 x H246 mm 19.76 x 16.34 x H9.69 inch	465 x 335 x H220mm 18.3 x 13.2 x H8.7 inch	40 mm 1.57 inch	180 mm 7.09 inch	3,44 kg	3,98 kg
MAX465H220TR	502 x 422 x H 267 mm 19.76 x 16.61 x H 10.51 inch	465 x 335 x H 220 mm 18.31 x 13.19 x 8.66 inch	40 mm 1.57 inch	180 mm 7.09 inch	4,46 kg	5 kg
MAX505	555 x 428 x H211 mm 21.85 x 16.85 x H8.31 inch	500 x 350 x H194 mm 19.69 x 13.78 x H7.64 inch	58 mm 2.28 inch	136 mm 5.36 inch	3,9 kg	4,38 kg
MAX505TR	555 x 428 x H258 mm 21.85 x 16.85 x H10.16 inch	500 x 350 x H194 mm 19.69 x 13.78 x H7.64 inch	58 mm 2.28 inch	136 mm 5.36 inch	5,04 kg	5,54 kg
MAX505H280	555 x 428 x H306 mm 21.85 x 16.85 x H12.04 inch	500 x 350 x H280 mm 19.69 x 13.78 x H11 inch	58 mm 2.28 inch	222 mm 8.74 inch	5,1 kg	6,03 kg
MAX505H280TR	555 x 437 x H326 mm 21.85 x 17.20 x H12.84 inch	500 x 350 x H280 mm 19.69 x 13.78 x H11 inch	58 mm 2.28 inch	222 mm 8.74 inch	6,1 kg	7,03 kg
MAX520	574 x 361 x H225 mm 22.60 x 14.21 x H8.86 inch	520 x 290 x H200 mm 20.47 x 11.42 x H7.87 inch	45 mm 1.77 inch	155 mm 6.10 inch	3,58 kg	4,02 kg
MAX520TR	585 x 361 x H225 mm 23.03 x 14.21 x H8.86 inch	520 x 290 x H200 mm 20.47 x 11.42 x H7.87 inch	45 mm 1.77 inch	155 mm 6.10 inch	5,06 kg	5,50 kg
MAX540H190	594 x 473 x H215 mm 23.39 x 18.62 x H8.46 inch	538 x 405 x H190 mm 21.18 x1 5.94 x H7.48 inch	50 mm 1.97 inch	140 mm 5.51 inch	4,76 kg	5,4 kg
MAX540H190TR	604 x 473 x H225 mm 23.78 x 18.62 x H8.86 inch	538 x 405 x H190 mm 21.18 x 15.94 x H7.48 inch	50 mm 1.97 inch	140 mm 5.51 inch	6,28 kg	6,94 kg
MAX540H245	594 x 473 x H270 mm 23.39 x 18.62 x H10.63 inch	538 x 405 xH245 mm 21.18 x 15.94 x H9.64 inch	50 mm 1.97 inch	195 mm 7.68 inch	5,30 kg	6,16 kg
MAX540H245TR	604 x 473 x H283 mm 23.78 x 18.62 x H11.14 inch	538 x 405 x H245 mm 21.18 x 15.94 x H9.64 inch	50 mm 1.97 inch	195 mm 7.68 inch	6,84 kg	7,7 kg
MAX620H250	687 x 528 x H276 mm 27.05 x20.79 x H10.86 inch	620 x 460 x H250 mm 24.40 x 18.11 x H9.84 inch	60 mm 2.36 inch	190 mm 7.48 inch	6,98 kg	8,14 kg
MAX620H250TR	687 x 528 x H286 mm 27.05 x 20.79 x H11.26 inch	620 x 460 x H250 mm 24.40 x 18.11 x H9.84 inch	60 mm 2.36 inch	190 mm 7.48 inch	8,5 kg	9,70 kg
MAX620H340	687 x 528 x H366 mm 27.05 x 20.79 x H14.41 inch	620 x 460 x H340 mm 24.41 x 18.11 x H13.38 inch	60 mm 2.36 inch	280 mm 11.02 inch	8,08 kg	9,6 kg
MAX620H340TR	687 x 528 x H376 mm 27.05 x 20.79 x H14.80 inch	620 x 460 x H340 mm 24.41 x 18.11 x H13.38 inch	60 mm 2.36 inch	280 mm 11.02 inch	9,6 kg	11,12 kg
MAX750H280	816 x 540 x H306 mm 32.12 x 21.26 x H12.04 inch	750 x 480 x H280 mm 29.52 x 18.90 x H11.02 inch	60 mm 2.36 inch	220 mm 8.66 inch	10,2 kg	11,8 kg
MAX750H400	816 x 540 x H426mm 32.12 x 21.26 x H16.77 inch	750 x 480 x H400 mm 29.52 x 18.90 x H15.75 inch	60 mm 2.36 inch	340 mm 13.38 inch	12,1 kg	13,7 kg
MAX800	850 x 440 x H158 mm 33,46 x 17,32 x H6.22 inch	800 x 370 x H140 mm 31,49 x 14.57 x H5.51 inch	45 mm 1.77 inch	95 mm 3.74 inch	6,2 kg	7,06 kg
MAX1100	1177 x 450 x H158 mm 46.34 x 17.72 x H6.22 inch	1100 x 370 x H140 mm 43.30 x1 4.57 x H5.51 inch	45 mm 1.77 inch	95 mm 3.74 inch	7,86 kg	8,72 kg
