SuproBox R Series Rack Case RACK11U48XR

, , , ,
Available on enquiry

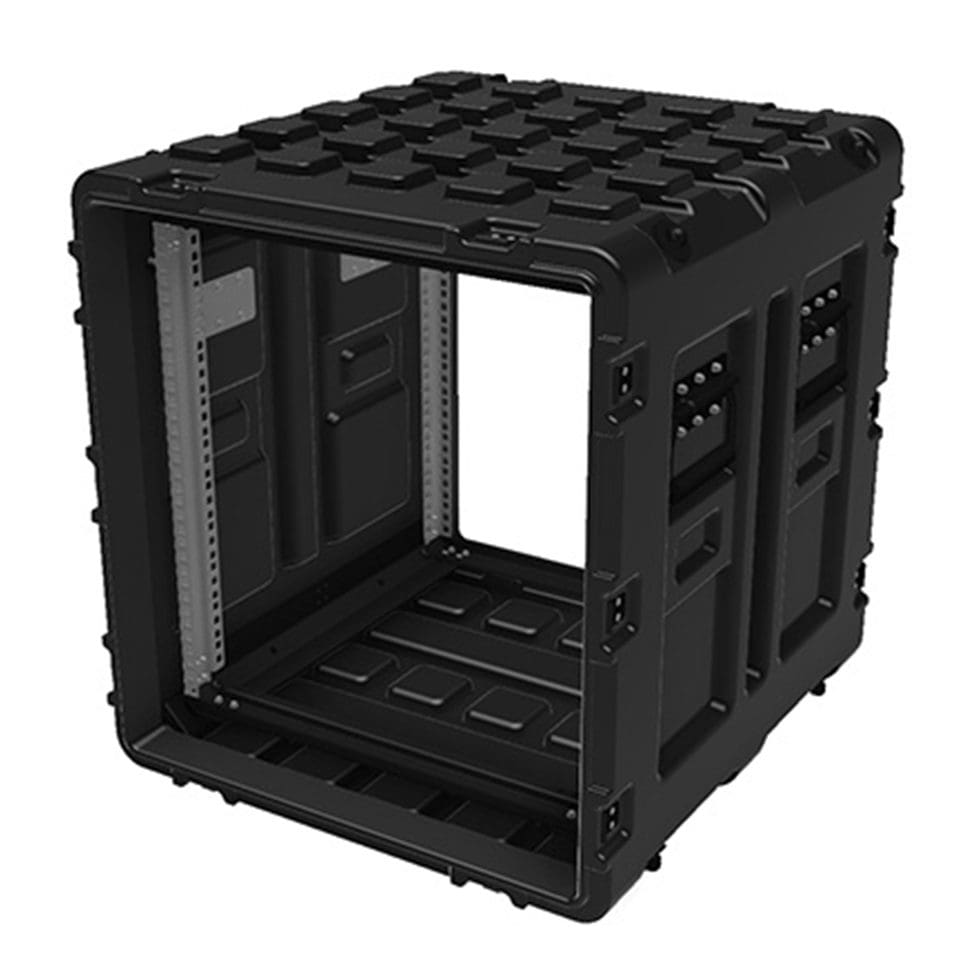

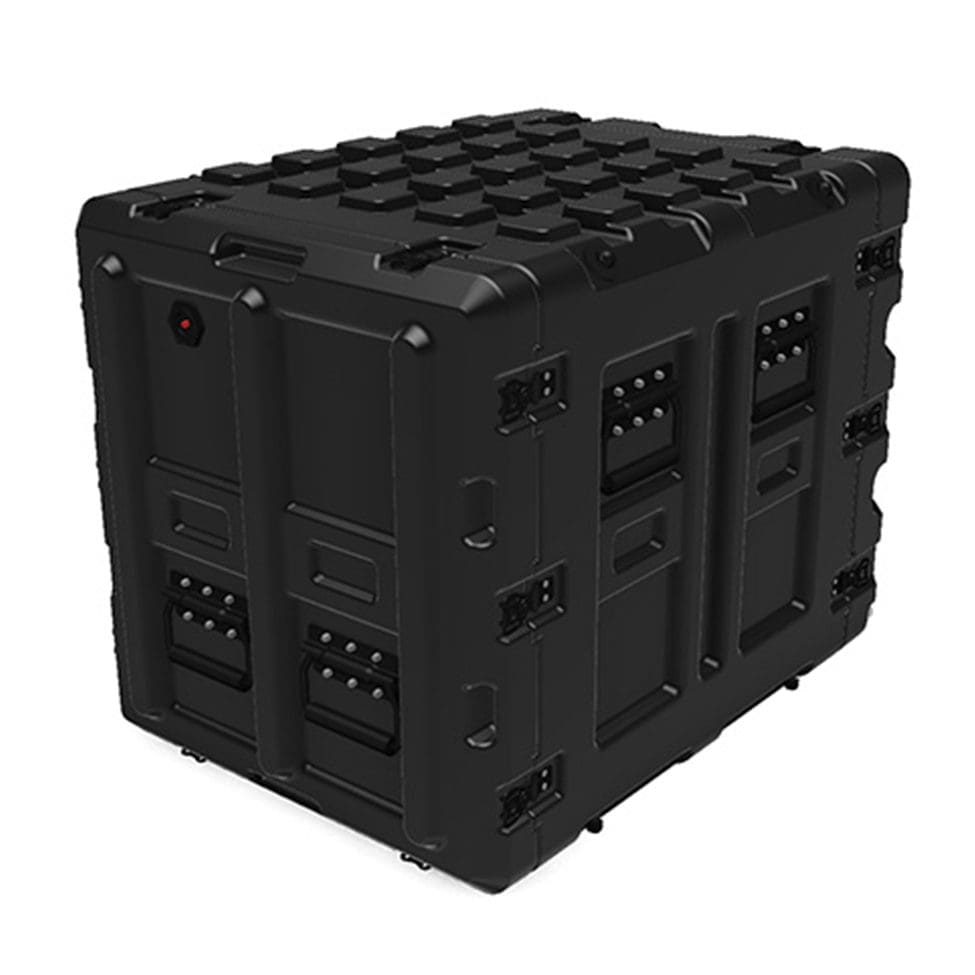

SuproBox R Series Rack Case RACK11U48XR

Shock and vibration protection for your electronics. Polymer case with aluminium rack frame suspended by anti-vibration mounts.
Available from 3U to 14U.
Tested to MIL-STD 810 G, Def Stan 81-41, STANAG 4280 and rated IP65.
All racks carry the Multibrix stacking feature. Ideal for electronics, memory storage equipment, servers, lab and testing equipment, medical equipment, aerospace equipment, cameras and broadcasting equipment, meteorological equipment, flight simulators and mobile military equipment.
Suprobox Rack Series cases come with stainless steel black latches. Coupling catches and handles may be customized along with several other options such as color. Mechanical pressure relief valve and plastic handles are included to standard configuration.
  • Ruggedized roto-molded case body made from impact resistant PE material
  • 480 mm – 610 mm rack depth
  • 80 mm or 120 mm lid with edge casters
  • Standard 19” Rack width designed to meet ANSI/EIA-310-C
  • Square hole rack rails to accommodate 6 mm standard cage nuts
  • Heavy-duty polymer handles with soft rubber grip
  • Shock mounts for maximum protection during transit
  • Stainless Steel Catches
  • Watertight gasket
  • Mechanical Pressure Relief Valve (Standard)
  • Lid hangers (standard)
  • Standard payload range 20-75 kg
  • Size range 3U to 14U
  • Light Weight compact design
  • Gridlines featured on the lid are specially designed for pallet strapping.
  • Reduced Footprint
  • Multibrix® stacking and storage system (secure stacking and cross stacking of same or different size cases).
  • Tested and Approved – MIL-STD 810 G, STANAG 4280, Def Stan 81-41
  • IP 65 rated for dust and water ingress
  • External -776 x 570 x 641 mm
  • External Width -776mm
  • External Depth -570mm
  • External Height -641mm
  • Product Brand -Suprobox
  • Wheels -None,Yes
  • Rack Space -11U
